Application

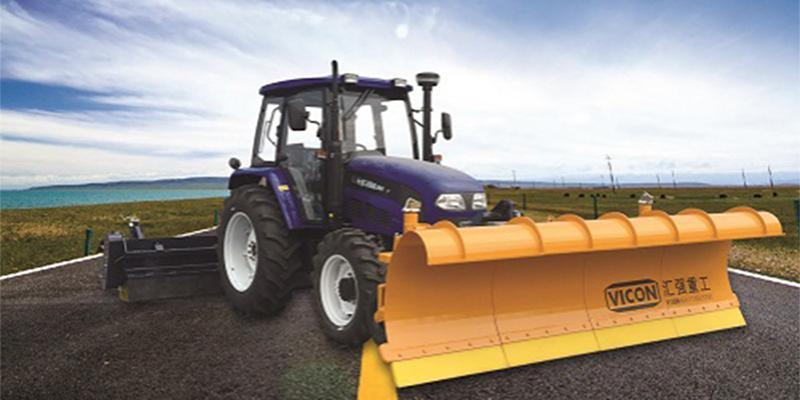

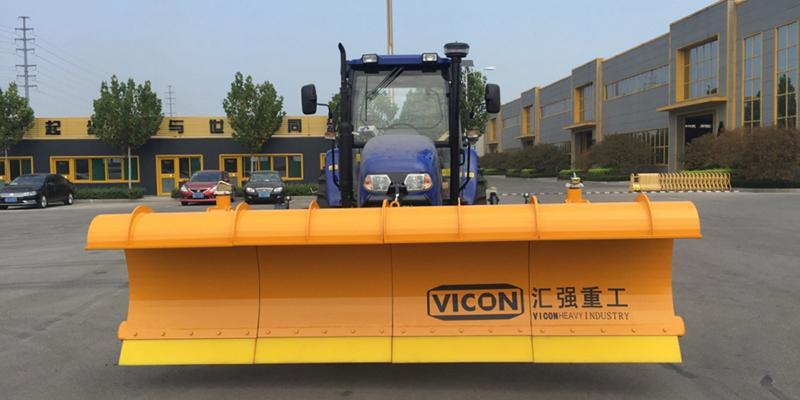

Multifunction tractor snow plow is an essential snow removal equipment suitable for variety of places such as modern highway, municipal sanitation, airport and so on.
| Dimension | 3600(L)×1010(W)×1000(H)mm |
| Max lifting height | 300mm |
| Surmountable obstacleheight | 200mm |
| Weight of plow | 1050kg |
| Spring number for surmounting obstacle | 4 |
| Rotation angle | ±30° (left or right) |
| Max working speed | 30km/h |
Feature
1. The snow plow chute adopts big radian structure, which is better to throw snow up from side wing. The machine has big cutting force and fast cutting speed, which can throw snow up for a far distance.
2. The snow plow chute is made from 16Mn highly wear-resistant and anticorrosion thicken stainless steel.
3. The snow plow blade is made from polyurethane with good durability and high bending strength.
4. The structure of snow plow blade adopts four-segment obstacle surmounting structure.
5. The snow plow blade has automatic obstacle avoidance and automatic reset functions. When the blade meets obstacles, it can automatically turn back in the external force and make sure the blade can realize high speed smooth driving on the pavement. The max height of obstacle avoidance is 200mm.

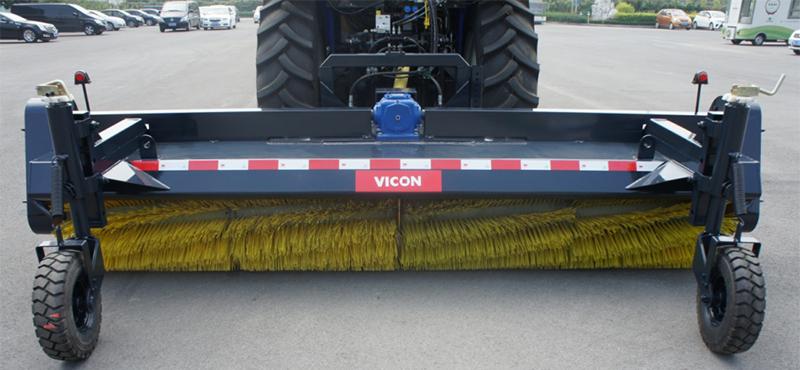

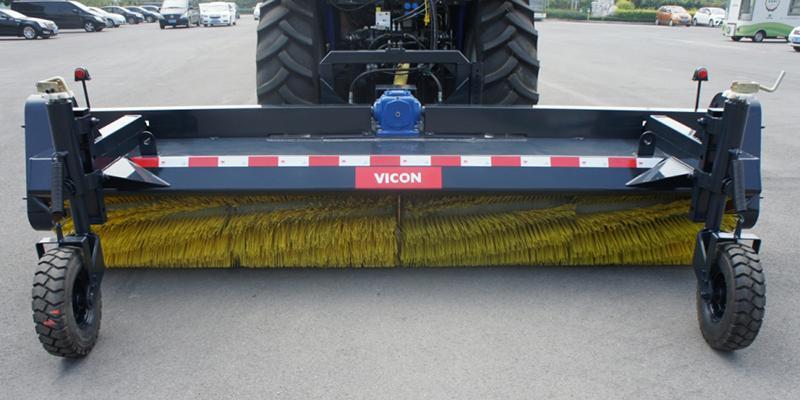

Application of rotary broom
The rotary snow broom is an essential snow removal equipment for modern highway, municipal sanitation, airport and so on.
| Clearing width | 3600mm |
| Working speed | 30km/h |
| Broom diameter | 660mm |
| Rotation speed | 300-560r/min |
| Working pressure of hydraulic system | 20.5Mpa |
| Rotation angle | ±30° (left or right) |
Feature
1. The broom adopts original imported polypropylene material with good wear resistance and bending resistance and not destroy pavement when working.
2. The rotary snow broom has the function of automatic obstacle avoidance.
3. We adopt rapid broom replacement device and no need to dismount hydraulic motor and hydraulic fluid pipe.
4. The operation system adopts hydraulic driving, which can adjust the pressure on the ground and meet the different requirement of various highway, airport and so on.
5. The chassis and rotary snow broom adopts quick connection mechanism and can finish the dismounting in 5 minutes.
6. The arc hood of rotary snow broom adopts punch forming of cold-roll steel sheet with powder coating treatment, which has high strength of corrosion resistance.
7. The multifunction tractor snow plow is equipped with independent lighting system with turn light and width lamp to meet the requirement of working at night.
8. The hydraulic system cooling unit is equipped with hydraulic oil forced cooling fan and automatic temperature opening device and overload protection system, which can ensure normal operation of broom in the temperature between －50℃ and ＋45℃.
Huiqiang design and manufacture a wide range of snow removal equipment and truck, we are a reliable multifunction tractor snow plow manufacturer and supplier, offering snow plow, snow blower, salt spreaders, deicing equipment and other snow plow attachments for winter road treatment. With continuous research and development, Huiqiang offers quality tractor mount snow plow with competitive price.
