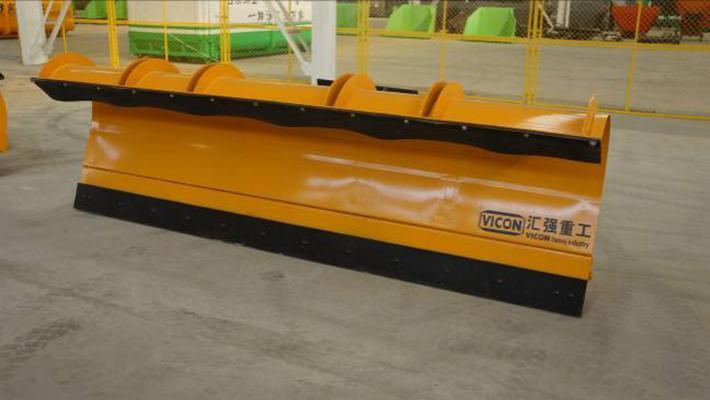

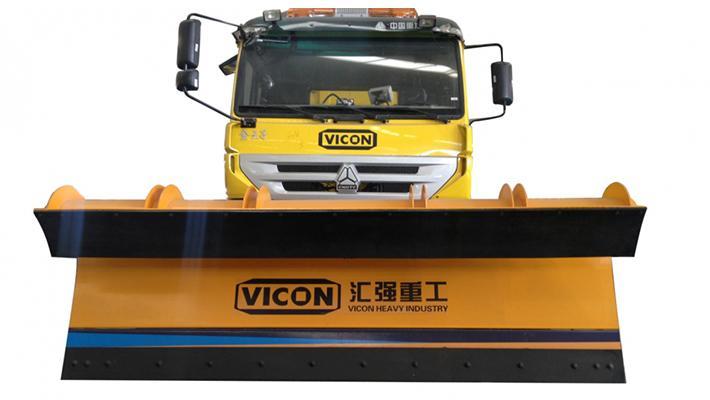

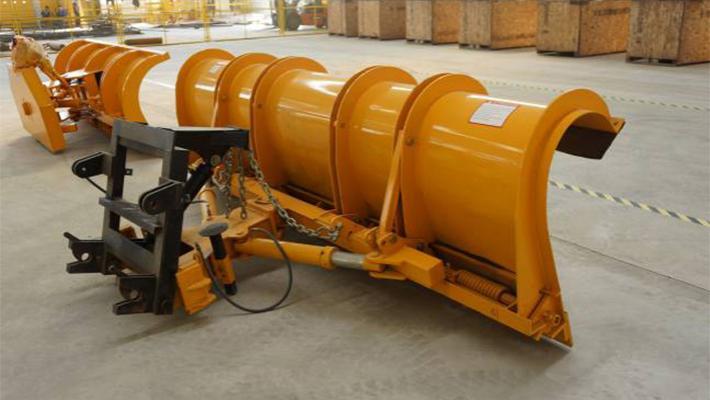

Front truck snow plow blade is an essential snow removal equipment in highway, airport and city road, which can be suitable for all kinds of road conditions.
|Width of plow blade||3000mm|
|Height of plow blade||1070mm|
|Left and right deflection angle||±30°|
|Clearing width in 30°||2640mm|
|Max working speed||60km/h|
|Thickness of plow blade||18mm*165mm|
|Automatic balance Angle||±8°|
|Height of obstacle avoidance||260mm|
|Operation method||wired remote control in cab|
1. The lifting and swing of snow plow blade is drive by hydraulic power system and the power of hydraulic station is 2KW.
2. All mechanism is designed with safety limit device to prevent destroy caused by overloading.
3. The arc hood of snow plow adopts whole welding of steel sheet with the thickness of 5mm and it can also achieve pavement profile automatically.
4. The surface of steel plow blade is coated with high quality anticorrosion materials and is also equipped with warning bar with double-side reflective effect.
5. The assembly of snow plow blade and chassis can be finished in very short time.
6. We adopt independent lighting system in the snow plow blade with turn light and width lamp.
7. We adopt wired remote control system and you can operate the machine in the cab conveniently.
8. The plow blade and chute is made from 16Mn steel, which is a kind of high-strength low-alloy steel and is easy to weld and has good corrosion resistance and long service life.
9. The plow blade and chute adopts bolted connection, which is very convenient for assembly.
10. The snow plow blade is made from NM400 wear proof alloy steel with medium frequency quenching treatment to ensure the high quality of blade.
Huiqiang design and manufacture a wide range of snow removal equipment and truck, we are a reliable front truck snow plow blade manufacturer and supplier, offering snow plow, snow blower, salt spreaders, deicing equipment and other snow plow attachments for winter road treatment. With continuous research and development, Huiqiang offers quality truck snow plow blade with competitive price.
