Description

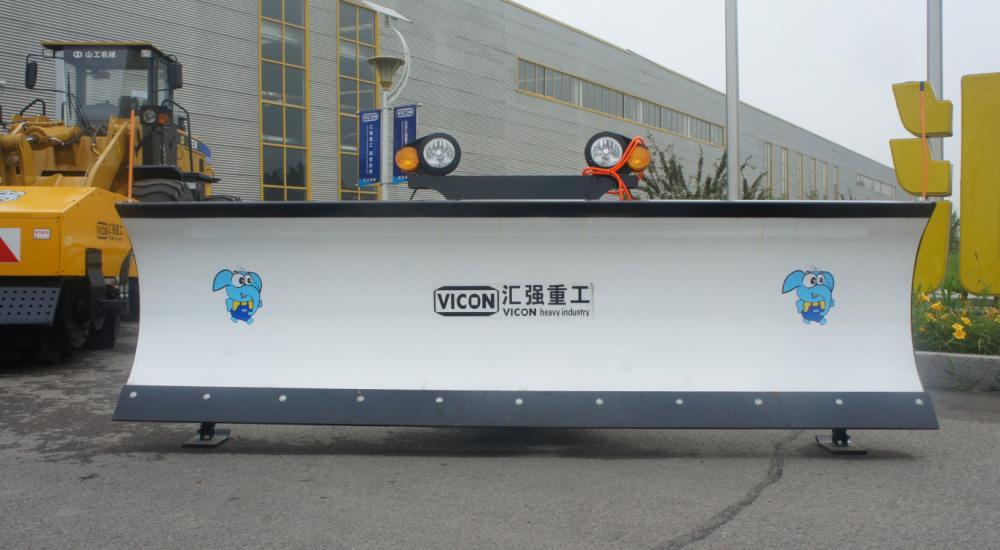

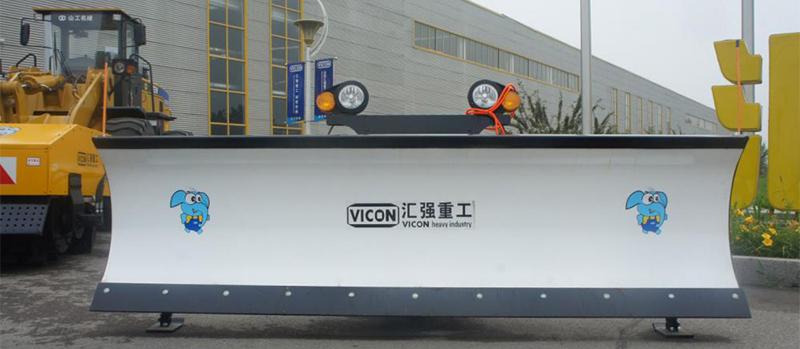

HQ300QC hydraulic snow plow blade is equipped with forced pressing down function and it can adjust the pressure of plow blade on the ground according to the road conditions, which has higher snow clearing efficiency.
| Model | |||
| Thickness (mm) | 4 | 4 | 4 |
| Width (mm) | 2500 | 2800 | 3000 |
| height (mm) | 810 | 860 | 860 |
| Working pressure of hydraulic station | 14Mpa-16MPa | 14Mpa-16MPa | 14Mpa-16MPa |
| Weight (kg) | 320 | 380 | 420 |
| Spring number of obstacle avoidance | 4 | 4 | 4 |
| Height of obstacle avoidance (mm) | 210 | 210 | 210 |
| Operation method | Remote control | Remote control | Remote control |
Feature
1. The plow blade adopts high-strength whole welding structure and the surface of steel plow blade is coated with high quality corrosion-resistant protection layer with powder coating treatment.
2. Independent hydraulic system is adopted in the snow plow blade with working voltage is 24V.
3. The blade is made from NM400 wear proof steel sheet, which can be used for more than 1500km.
4. The hydraulic snow plow blade adopts drive-in fast connection device and you can finish the dismounting work in 1 minute.
5. The hydraulic snow plow blade is equipped with independent lighting system and turn light and width lamp.
6. The plow blade can realize automatic reverse to avoid obstacles and also has automatic resetting functions. The height of avoidance obstacle is up to 210mm.
Huiqiang design and manufacture a wide range of snow removal equipment and truck, we are a reliable hydraulic snow plow blade manufacturer and supplier, offering snow plow, snow blower, salt spreaders, deicing equipment and other snow plow attachments for winter road treatment. With continuous research and development, Huiqiang offers quality hydraulic snow plow blade with competitive price.
