Description

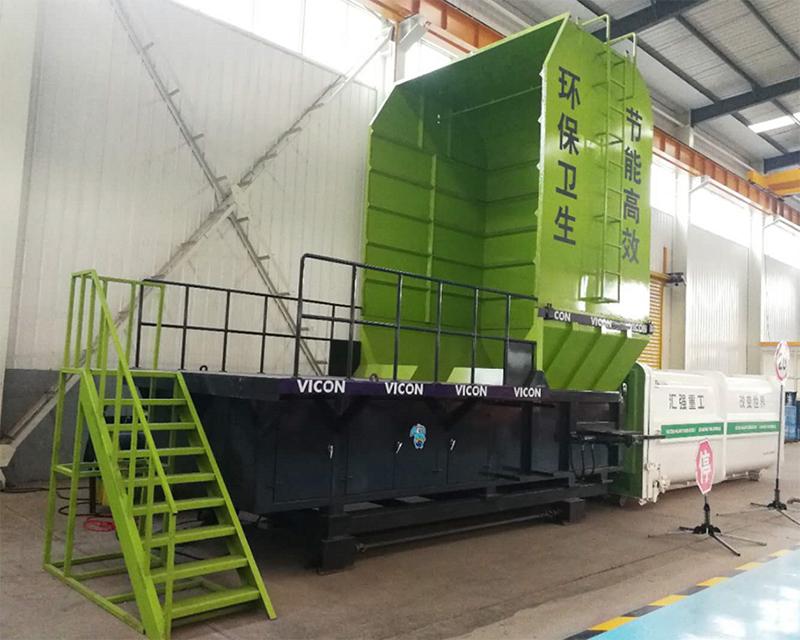

Industrial Trash Compactor is composed of compactor, gate lifting mechanism, hydraulic locking device, container pulling and pushing device, automatic travel device, hydraulic system, electronic control system, bucket lifting device, waste container, etc. Easy installation, highly reliable, high efficiency are features of this horizontal trash compactor. This horizontal trash compactor is suitable for collecting and compressing the waste from handcart, three wheeler, self-discharging garbage truck, trash compactor, etc. This horizontal trash compactor is able to be equipped with several waste containers. There are multiple loading methods, for instance, rear load, side load, etc.
Model | Compaction Method | Cycle Time | Capacity | Compaction Ratio | Power | Pressure of Compaction Plate | Volume of the Hopper | Dimension (mm) | Working Pressure | Moving Velocity | Master Cylinder | Auxiliary Cylinder |
HQ30LJZ | Horizontal Compaction | ≤45s | ≥20t/h | ≥1:3 | 15kw | 420KN | ≥9m³ | 5800*3300*5850 | 21MPa | 3.2m/min | 160/125/2500 | |
HQ50LJZ | Horizontal Compaction | ≤45s | ≥30t/h | ≥1:3 | 22kw | 534KN/407KN | 48m³ | 7180*2080*6250 | 21MPa | 6m/min | 110/80/2930 | 90/45/750 |
HQ60LJZ | Horizontal Compaction | ≤45s | ≥40t/h | ≥1:3 | 22kw | ≥450KN | 74m³ | 7350*3000*3360 | 28MPa | 6m/min | 160/125/3500 | 160/125/3000 |
