Application
HQ-550ZHCXC heavy duty snow removal truck is equipped with ZZ2167N6027C1 dump truck chassis, front loading adjustable snow plow blade in the left and right direction, middle loading HQS-420 rotary snow broom and back loading liftable snow blower which can switch orientation of left and right. This snow removal truck has high snow removal efficiency. After using our snow removal truck, the residual snow on the road is very small and the friction coefficient of road is rather high.
| Driving form | 4x4 |
| Dimensions | 12600X4750X3700mm |
| Total weight | 19000kg |
| Engine power | 279kw |
| Working engine power | 276kw(Weichai-Deutz) |
| Weight on front axle | 6.5t |
| Transmission | AMT |
| Dimensions | 1600 (L)x5500(W)x1600(H) mm |
| Rotation angle of moldboard | ±36° |
| Max thickness of snowdrift | 330mm |
| Weight | 2200kg |
| Working voltage | 24V |
| Height of obstacle avoidance | 310mm |

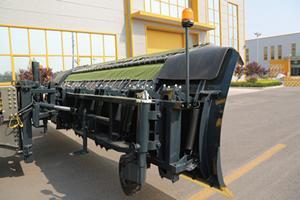

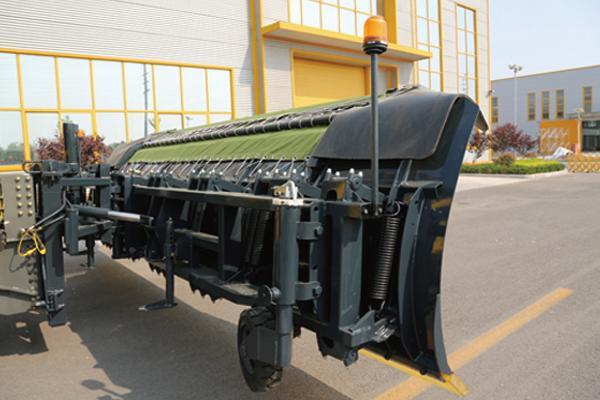

Feature: we adopt suspension mounting and snow plow can incline about 36° both in the left and right, which leads to more effective snow removal.

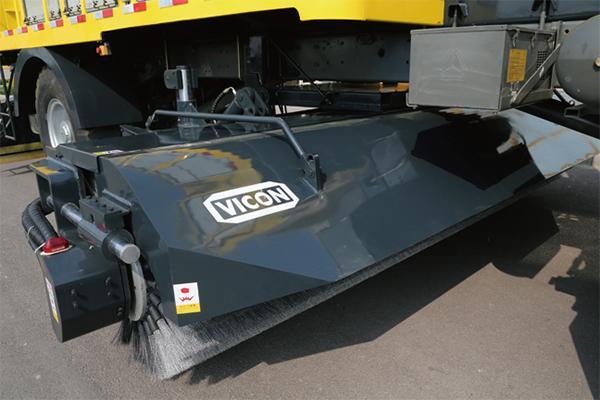

3. Middle loading HQS-420 rotary snow broom| Dimensions | 1850(L)x4200(W)x1350(H)mm |
| Effective snow removal width | 3800mm |
| Broom diameter | 914mm |
| Max rotate speed | 900rpm |
| Max adjustable angle(left and right) | 34° |
| Max travel speed | 80km/h |
| Weight | 2500kg |
Feature: we adopt independent hydraulic system and has a superior heat dissipation performance. The rotary snow broom and truck chassis adopt rapid connecting structure that is easy to assemble and automatic adjust the pressure of brush pressing on the ground. The angle of rotary snow broom can incline about 34° both in the left and right direction ensuring effective snow removal.
4. Back loading HQFJ-320 snow blower| shaft power | 110kw |
| Air volume | 9m3/s |
| Air pressure | 10kPa |
| Max operating speed | 500km/h |
| Rated speed | 3500r/min |
| Size of air nozzle | 350×350mm |
Principle
The back loading snow blower device is liftable and can switch the blower orientation of left or right, which can be lifted up when not working and put down when working. In the vertical direction of driving, an air passage will be formed and the air direction can be controlled in the left or right. In the meantime, the direction of air should be the same as the direction of snow plow and rotary broom. The speed of air nozzle will exceed 30m/s, which can blow out the residual snow and throw the snowdrift that is collected by plow and brush for a longer distance.
