Description

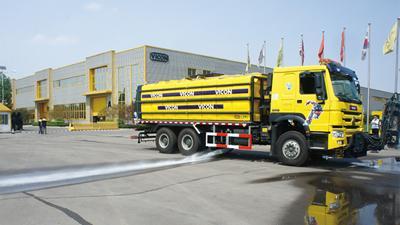

JYJ5257TCXE1 liquid snow melt spreader snow removal truck adopts ZZ3257N4347E1 chassis and installs liquid snow melt spreader in the rear end, which is dedicated to snow removal of urban road, watering dust prevention, and spreading liquid snow melt agent. The liquid snow melt spreader is equipped with full hydraulic operation system and independent PTO (power take-off) and hydraulic joints, which is an essential snow removal equipment in the highway, city environmental sanitation, airports and so on.
| Chassis | HOWO heavy duty truck ZZ3257N4347E1 |
| Driving form | 6X4 |
| Engine power | 249kw |
| Total weight | 25000kg |
| Max driving speed | 80km/h |
| Emission standard | China V |
| Tire | 12.00R20(antiskid steel wire tire) |
Feature
1. The engine adopts six cylinder and four-stroke E-CDIS turbocharged diesel engine.
2. The transmission is MT (Manual Transmission) with ten forward gears and two reverse gears.
3. The cab is decorated with heat preservation and sound-proof materials, which is also equipped with air conditioner, warm air blower, defroster, and instruments and apparatus, warning indicators and other general standard configuration.
4. The snow removal truck is equipped with a complete set of lights such as forward lighting, warning lights, double sided arrow lights, and so on. Besides, the body of truck is decorated with reflecting marking.
| Diameter | 820mm |
| Effective length | 3500mm |
| Rotary angle in the left or right | 30° |
| Rotation speed | 380 r/min |
| Max thickness of snowdrifts | 150mm |
| Working speed | 40km/h |
Feature
1. The rotary broom adopts full hydraulic control system, which is easy and reliable to control the lifting height and rotary of broom in the left or right direction.
2. The rotary broom is drove by bilateral built-in hydraulic motor with torque of 950N.m(continuous operation) and oil flow of 250L/min and rated working pressure of 25MPa.
3. The brush of broom is made from high quality original imported polypropylene material and adopts tooth engagement single chip combination structure. The distance between two pieces of brush is 51mm and the service life of broom is more than 200 hours.
4. The distance between broom and floor is adjustable with a high precision.
5. The rotary broom has the function of pavement profiling and clean the snow based on the road contour. The rotary snow broom can automatically adjust to suit the change of road gradient.
6. The rotary snow broom is supported by two solid rubber tire with the designs of 360° universal wheels.
| Main configuration | Specification | Brand |
| Automotive self-priming centrifugal stainless steel sprinkling pump | 80QSB-60/90 | Shandong Weijia |
| SRY type stainless steel filter | Drift diameter: DN80 | KELUNWEI |
| Horizontal type liquid phase safety reflux valve | Drift diameter: 65 | Shanghai Yongpeng |
| Intelligent electric flow control valve | VQ941H-16P | Shanghai Jiade |
| Side stripper of saline water | 4629 series | Shandong Weijia |
| Horizontal stripper of saline water | OJ353 series | Shandong Weijia |
Feature

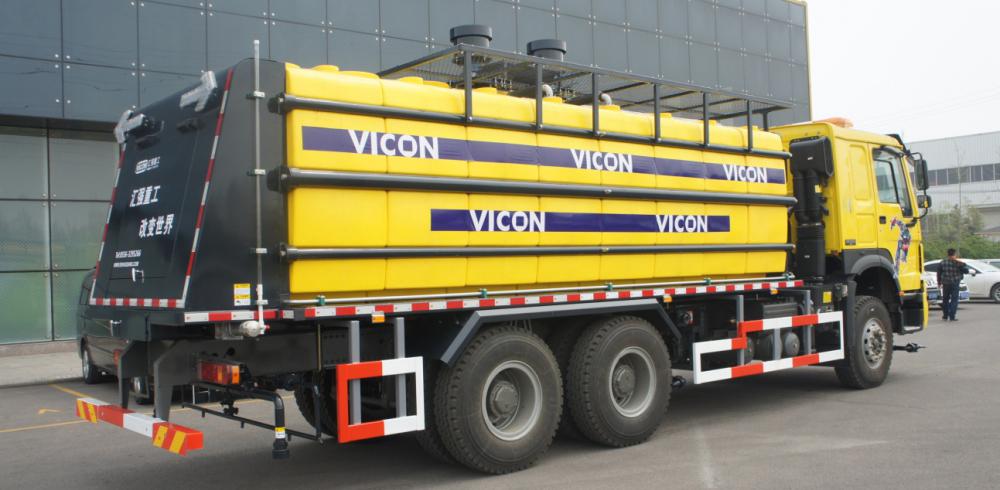

1. The snow spreader adopts tandem mechanisms liquid storage tank with 10m3 effective volume.
2. The body of liquid storage tank adopts polyethylene PE corrosion-resistant materials and has the thickness of 8mm. The tank has passed through strict testing and has the advantage of long service time, low temperature resistance, corrosion resistance and shock resistance.
3. The snow removal truck is designed with multifunction, which has the functions of road sprinkle such as front spraying water, middle swashing and rear end sprinkling water and other functions such as dust, dirt, grease dirt cleaning and spreading liquid snow melt agent (saline water).

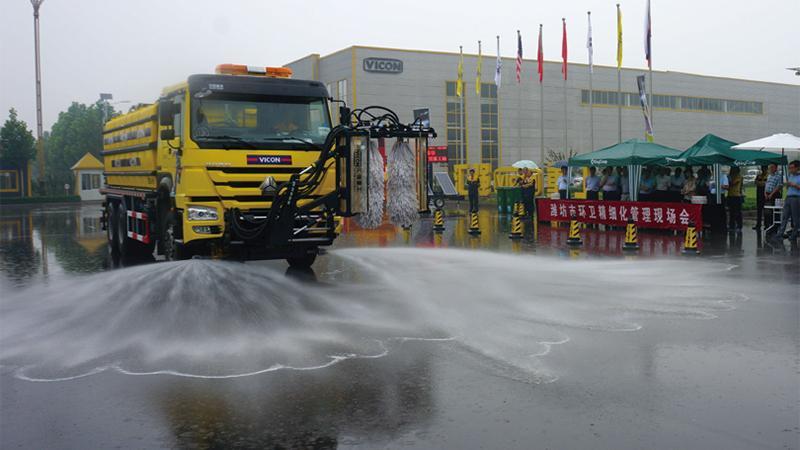

4. The front spraying device is equipped with one spread-head both on the left and right in order to washing and cleaning the dust, dirt and grease dirt on the road. The width of water spraying is no less than 8m.
5. The middle washing device has two spaying gun on the left and right, which can spray high-pressure water to wash and clean wide streets and highway. The single side washing width is no less than 12m and double side washing width is no less than 24m.

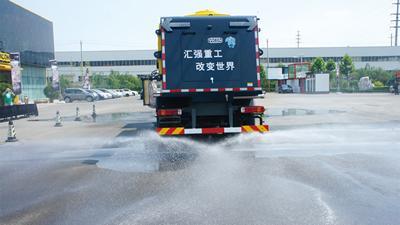

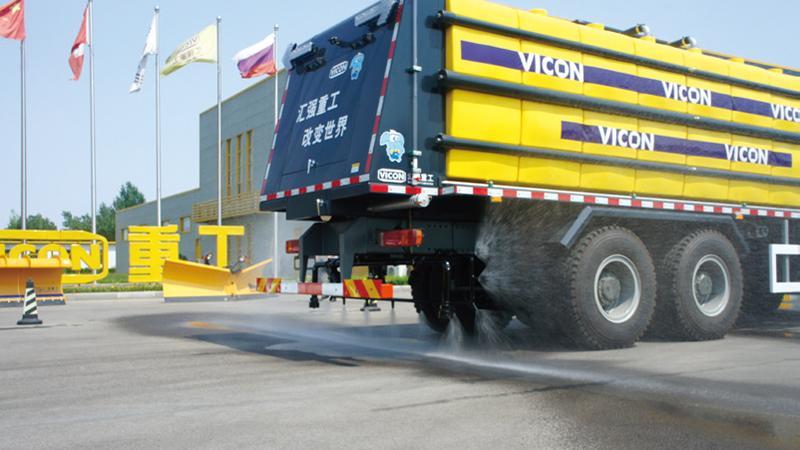

6. The rear end spreader with water spreading functions can be used to clean and washing variety of roads, toll stations, ramp and so on. The spraying width is no less than 14m.
7. Water cannon is mainly applied to highway greening with the max cannon-shot of 30m.
8. The front spraying and middle swashing and rear end sprinkling are all used one set of water supply system. The side discharge pressure is 1Mpa and rated flow is 60m3/h.
9. The spraying width of saline water is adjustable from 5m to 12m and the density of saline water or liquid snow melt agent is adjustable from 50 g/m2to 300 g/m2.
10. The snow removal truck is equipped with two automatic stirrers for saline water or liquid snow melt agent, which is easy to achieve the simultaneous process of adding snow melt agent, spraying water and stirring.
