Description

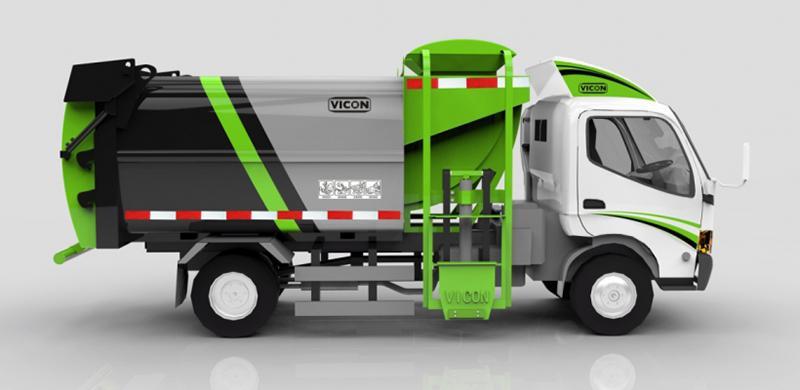

JYJ5081TCAE side load garbage truck is designed as front garbage collection equipment for waste transfer station, large stationery trash compactor, garbage compactor truck and other municipal solid waste transfer systems.
The side load garbage truck adopts top feeder nose and can thoroughly solve the secondary pollution problem caused by sewage leaking in the collection and transportation process of the same grade side load garbage truck.
The side load garbage truck is featured with short turning radius, flexible operation and portable body, which is widely applied to garbage collection and transportation of kitchen garbage and household garbage in city street and residential area.
Technical parameter| Dimension | 5800×2085×2740,2720(mm) |
| Total weight | 8280(Kg) |
| Curb weight | 5400(Kg) |
| Rated contained mass | 6m³ |
| Tank capacity | 24/15(°) |
| Approach angle/Departure angle | 3000/5280 |
| Axle load | 2 |
| Number of axles | 6 |
| Tire number | 1685(mm) |
| front tread | 1600(mm) |
| Rear tread | 2685(Kg) |
| Front passage | 3 |
| front/rear overhang | 1085/1350(mm) |
| axle-base | 3815,3365,4150(mm) |
| Max speed | 100(km/h) |
| Spring films | 8/6+6,9/12+6,9/6+6,8/12+6 |
| Tire specification | 7.50-16,7.50R16,8.25R16 14PR |
Advantage
1. The type garbage truck not only can separately collect all kinds of garbage but also can perform garbage compaction and transportation treatment. There is no leakage in the progress of garbage collection and transportation, which is also environmental and saving energy.
2. The side load garbage truck is equipped with elevation device with self-discharging functions in high position. The container is lifted from the side of truck and loading on the top and finally discharging in the rear end.
3. We have complete protection methods. The sub-frame is designed with safety support rod to provide strong support when testing the bottom of container and truck chassis.
4. The operation of our garbage truck adopts mechanical, electrical and hydraulic integration technology and you can realize all the operation in the cab, which is very convenient and reliable.
Huiqiang design and manufacture a wide range of municipal sanitation equipment, we are a reliable side load garbage truck manufacturer and supplier, offering waste collection and compaction equipment, garbage truck, road and street cleaning vehicle for environmental protection. With continuous research and development, Huiqiang offers quality side load trash truck with competitive price.
