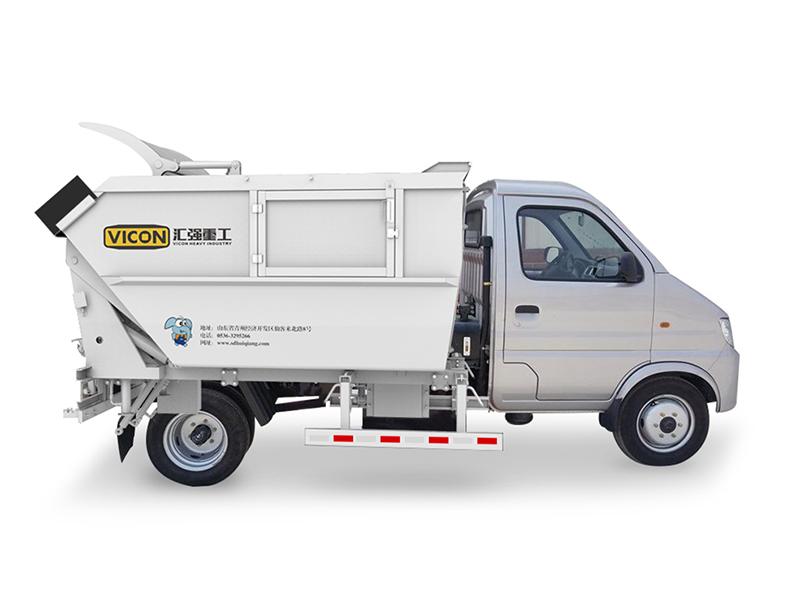

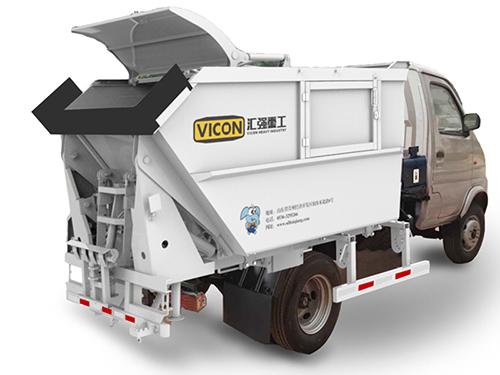

This rear loader garbage truck adopts Yellow Sea N3 base plate and hydraulic power. As one type of rear load garbage truck, this rear loader is able to automatically grasp the waste bins, dump, discharge the waste from transfer box. This rear loader is suitable for more than 90%waste bins on the market. The automatic spring shutter curtain is equipped above the transfer box to reduce the smelling out of waste.
The base plate is modified for higher power, lower noise, higher comfort, higher safety, lighter weight and smaller size. The rear loader is able to dispose and transfer garbage from larger area, and thus reducing the working strength of sanitation workers.
With easy operation and low maintenance, this rear loader is widely used for transferring the garbage in city and town.
|Model||BSQ5030ZLJDDG5||Wheel Base (mm)||3405|
|Base Plate Model||DD1032B||Number of Axles||2|
|Motor Model||4G69S4N (105KW) Base Plate National V Emission Standard||Highest Speed (km/h)||150|
|Dimension (mm)||5708*1840*2310||Number of Leaf Spring||-/5|
|Total Weight (Kg)||2735||Number of Tires||4|
|Passengers (Person)||2+3||Tire Specification||6.50RB16LT|
|Anti-Lock Braking System||Yes||Front Gauge||1410|
|Front Overhang/Rear Overhang (mm)||895/1780||Rear Gauge||1425|
|Recycling Time||20s||Waste Dumping Time||20s|
