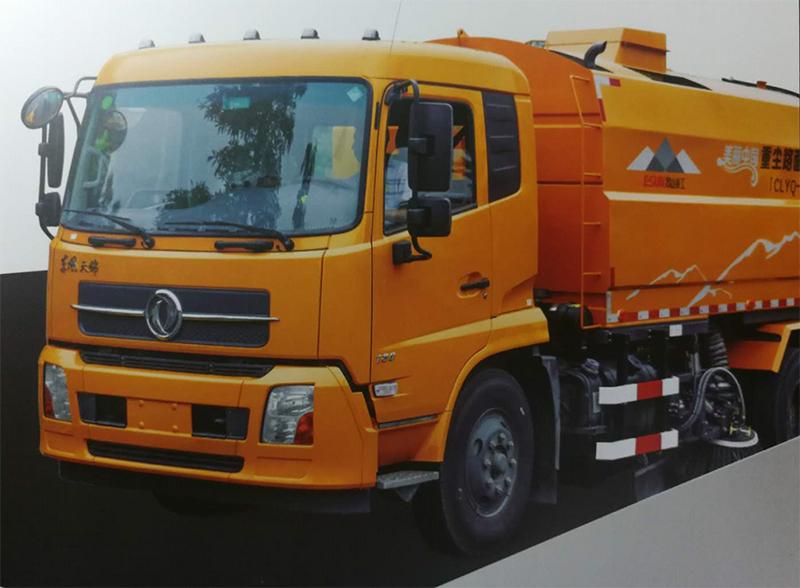

Street Washer Truck

Description:
This street washer truck is capable of watering for dust fall, absorption and sweeping by side brush, collecting and transferring by main brush. With wide absorption range and high absorption rate, the washing speed of this street washer truck can reach 30km/h. Therefore, this street washer truck is suitable for industrial and mining enterprises with thick sandstone and wide area. Compared to common washer truck, this street washer truck manufactured by VICON is easier to wash those enterprises. This street washer truck is also widely used for fast cleaning urban main road, overhead road, express way, bridge tunnel and so on with heavy dust.

Technical parameters:
Model BSQ5160 BSQ5161 BSQ5162
Base Plate Model DFL1160BX1V DFL1160BX1V DFL1160BX1V
Base Plate Motor Model ISD180 50 ISD210 50 ISD180 50
Emission Standard National V National V National V
Dimension 6950*2500*3265mm 7650*2500*3280mm 6950*2500*3265mm
Wheel Base 4200mm 4500mm 4200mm
Total Weight 15515KG 15515KG 15515KG
Operation Mode Absorption Absorption Absorption and Side brush. Washed by main brush and side brush together
Effective Volume of Dust Collecting Chamber 6m³ 8m³ 4/6m³
Features
  • High absorption capacity with absorption diameter of 200mm, and thus suitable for washing thick sandstone.
  • Fast washing speed. The washing speed can reach as fast as 30km/h with high washing efficiency.
  • Have obstacle avoidance function. Be suitable for rough roads, leading to wide range of application.
  • The side brush is located out of the main frame. The suction port works with the side brush for reducing the dust.
  • The main brush works collaboratively with the side brush to clean the whole street without missing any area.
  • The main brush and side brush are both equipped with low pressure watering inhibitor to make the water pressure below 5 bar. By this means, the road surface would not be damaged.
