Application

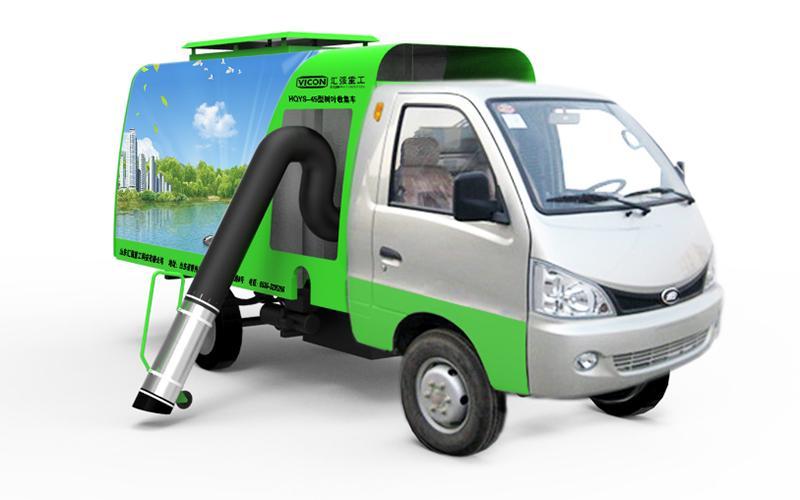

HQYS10 electric leaf collection truck adopts electric driving form and can suck autumn leaves and other light things and then crush them and transport to other places, which can easily solve the cleaning problem of mass leaves and trash in the grassland, pavement, corner of building, greenbelts and so on.
| Item | Technical parameter |
| Power of driving motor | 3kw |
| Power of sub motor | 15 Kw |
| Max rotation speed of motor | 3600 r/min |
| Size of impeller | Diameter: Ø450mm, 4 blades |
| Air volume | 3700 m³/h |
| Flexadux | Ø200mm*3.5m |
| Transmission V belt | SPA type V belt Ld800 |
| Working noise | 86 dB(A) |
| Petrol capacity | 30L(above 92# clean gasoline) |
| Dimension | 4600x1480x2100mm |
| Container capacity | 3.3m³ |
| Collection speed | 0.1m³/min |
| Driving speed | ≤50Km |
Structure
Electric leaf collection truck is composed of electric driving platform, leaf collection and crushing device, water sprinkling and dust decreasing device, collection container, hydraulic system for discharging and so on.
Working principle
Our electric leaf collection truck is equipped with elastic flexadux and can collect all the leaves, bags, and shredded paper, foamed plastic and other light trash within 6 meters' diameter of our collection truck. Besides, all the collection trashes are crushed and storage in rear container. Finally, when the container is filled, the hydraulic system will control skip bucket in the truck to discharge trashes, which can largely increase the efficiency of cleaning, collection and transportation.
Huiqiang design and manufacture a wide range of municipal sanitation equipment, we are a reliable electric leaf collection truck manufacturer and supplier, offering waste collection and compaction equipment, garbage truck, road and street cleaning vehicle for environmental protection. With continuous research and development, Huiqiang offers quality leaf collection vehicle with competitive price.
